Drop Forged Putlog Coupler

Factory Direct Product

Drop Forged Putlog Coupler (Single Coupler) - 48.3mm

Heavy Duty Single Coupler for Transoms. Taihe Drop Forged Putlog Couplers provide a secure connection between putlogs and ledgers. The solid forged body offers superior strength compared to pressed clips. Standard: BS1139 / EN74 Certified. Type: One-piece Drop Forged Body. Size: Fits standard 48.3mm O.D. tubes. Finish: Electro Galvanized / Hot Dip Galvanized. Weight: 0.65kg - 0.85kg.

Factory DirectOEM AvailableCE / ISO / SGS Available
Send Inquiry Download Catalog
Factory Direct Supply Direct manufacturer support for product sourcing and project orders.
OEM / Customization Custom mark support based on the current product content.
CE / ISO / SGS Available Company certificate support for buyer review.
Export Packaging Woven bag and pallet packing details from current content.

🏗️ EN74 Certified

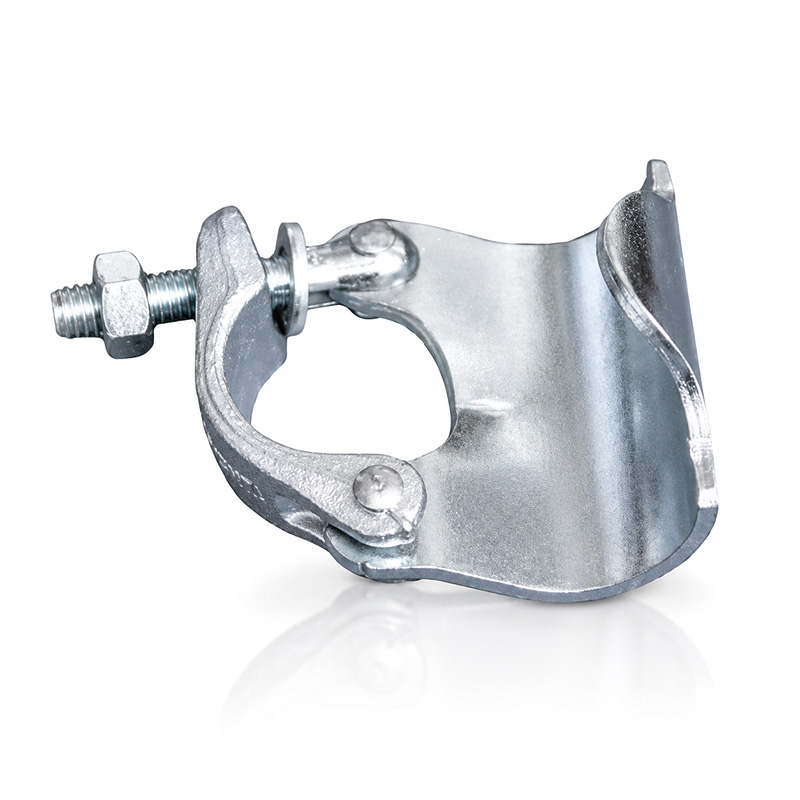

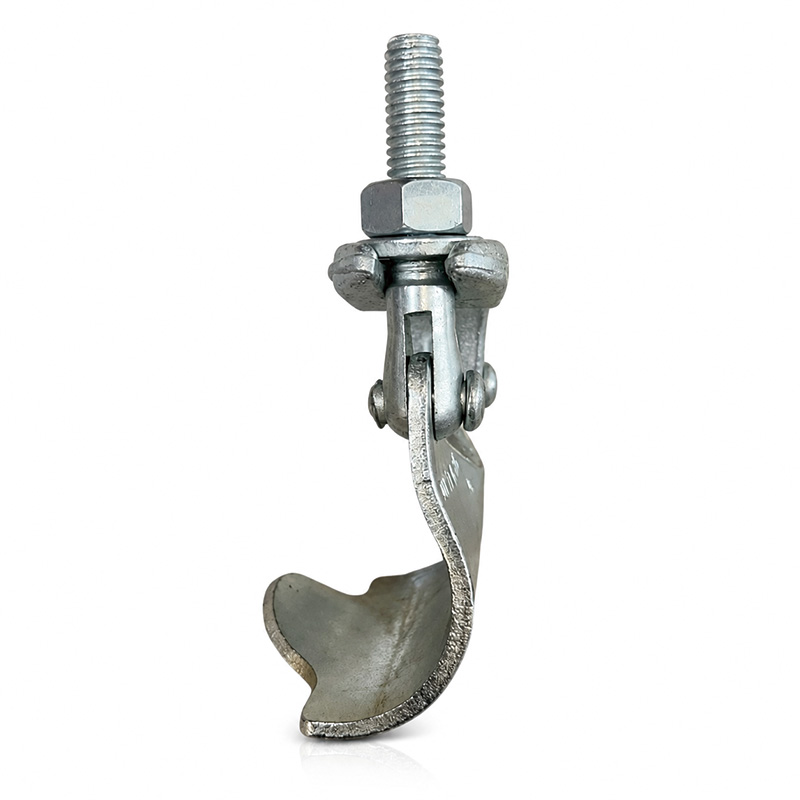

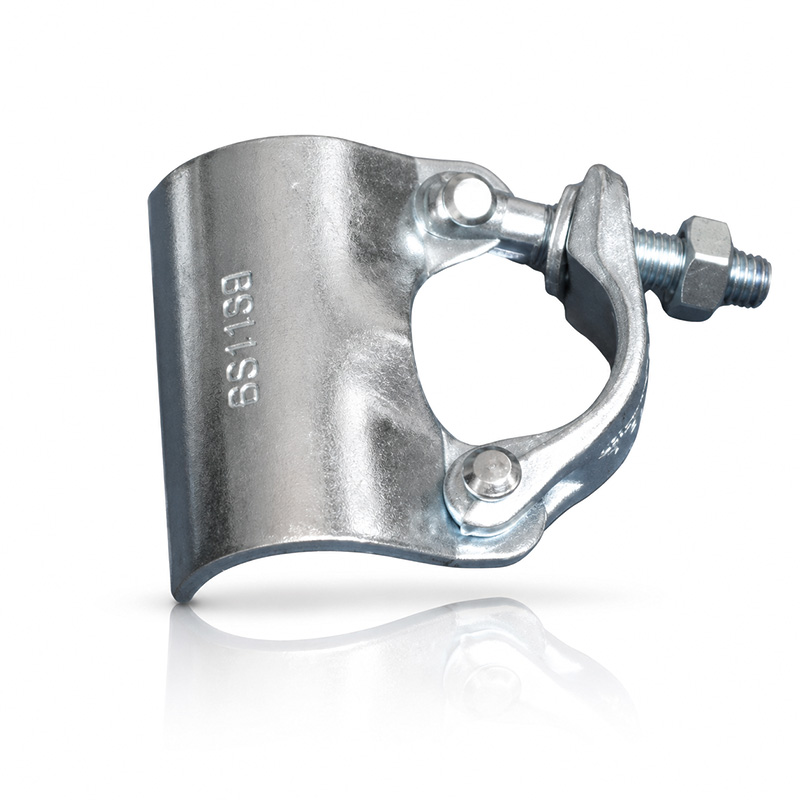

Drop Forged Putlog Coupler
(Single Coupler)

Secure your platform with the Taihe Drop Forged Putlog Coupler. This essential scaffolding single coupler acts as a reliable putlog clip, connecting transoms to ledgers to support Steel Planks.

  • ✓ Material: One-piece Drop Forged Body.
  • ✓ Size: Standard 48.3mm scaffold fitting.
  • ✓ Finish: Zinc Plated for durability.

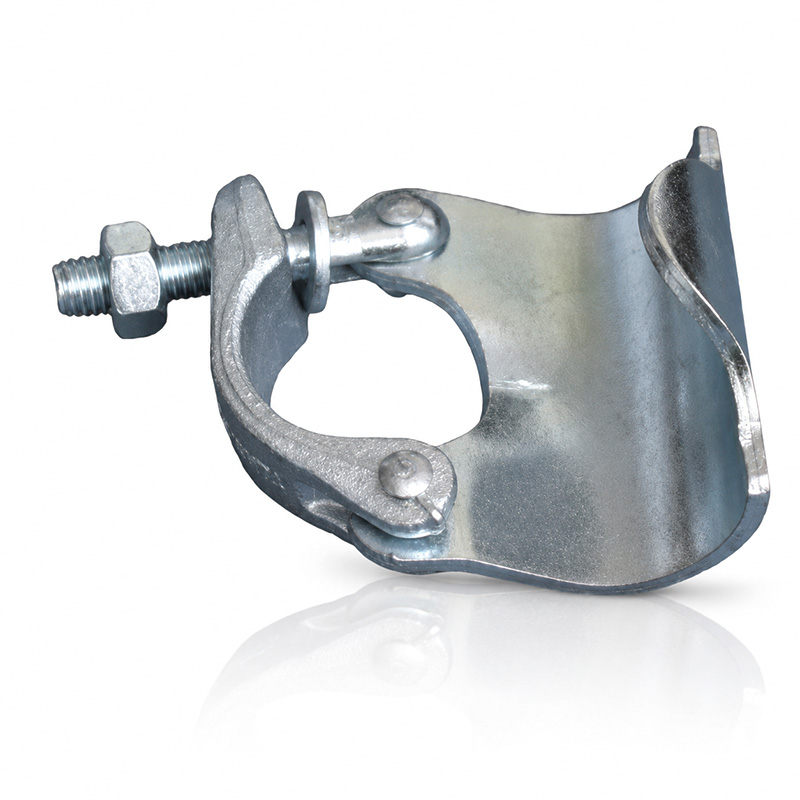

Putlog Coupler - 17
Why Choose Taihe

Forged Quality

🔨

Drop Forged Body

The body is forged from Q235 steel. This makes our drop forged putlog coupler much stronger than common pressed clips.

👂

Special Flat Cap

This single clamp features a flat pressed cap, allowing scaffold boards to lay flat on the tube without obstruction.

🛡️

Long Life

Compatible with Double Couplers, our fittings are galvanized to resist rust in harsh environments.

Technical Specifications

Parameter Specification Details
Product Name Drop Forged Putlog Coupler
Alias Scaffolding Single Coupler / Putlog Clip
Material Drop Forged Steel (Q235)
Tube Fit 48.3mm scaffold fitting
Weight 0.65kg - 0.85kg
Standard BS1139 / EN74

Hebei Taihe Construction Equipment Co., Ltd. Strength

Large scale production of Drop Forged Putlog Coupler units daily.

CAPACITY Forging Lines

10 automated forging lines ensure high output.

QUALITY QC Lab

Strict testing on distortion and slip.

STOCK Fast Delivery

Standard couplers are ready to ship.

OEM Custom Logo

We can emboss your brand on the cover.

Applications of Single Couplers

The Drop Forged Putlog Coupler is specifically designed for non-load bearing connections. It is most commonly used to attach putlogs (transoms) to ledger tubes in tube and clamp scaffolding.

Unlike the Double Coupler which is for structural support, the scaffolding single coupler serves to hold the platform boards in place. Its unique flat cap makes it an ideal putlog clip, ensuring that Scaffolding Planks sit flat and secure without tripping hazards.

Always use a genuine 48.3mm scaffold fitting to ensure safety and compliance with EN74 standards.

Forging Process

Watch how we create the drop forged putlog coupler. Heating and forging the steel ensures that every scaffolding single coupler we produce is dense and defect-free.

  • 🔥 Heating: Precise temperature control.
  • 📏 Testing: 100% check on thread and cap fit.

Packing & Shipping

未标题 1
📦 Woven Bag

Cost-effective packing. 25-30 pcs per bag.

Drop Forged Putlog Coupler detail image 3
🚢 Pallet

Bags on steel pallets for fast unloading.

FAQ: Single Couplers

Q: Is this a Putlog Clip?

A: Yes, the Drop Forged Putlog Coupler is often referred to as a putlog clip or single coupler.

Q: Double vs Single Clamp?

A: A single clamp is for holding boards/transoms (non-load bearing), while a double clamp is for structural load bearing.

Q: Does it fit my tubes?

A: Yes, it is a standard 48.3mm scaffold fitting designed to fit all 48.3mm O.D. scaffolding tubes.

Complete System

Recommended Products

Scaffolding components direct from Taihe.

Double Coupler

Right Angle Clamp

Swivel Coupler

Any Angle

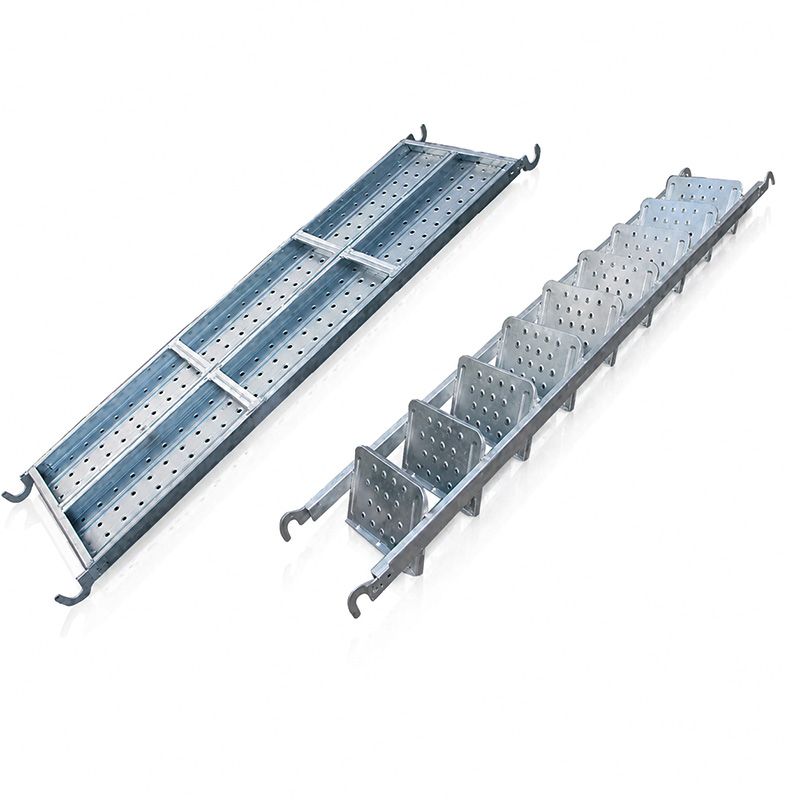

Steel Step Plank
