Adjustable Steel Column Formwork & Fixed THFP Panels

Factory Direct Product

Adjustable & Fixed Steel Column Formwork System

Taihe offers versatile Steel Column Formwork solutions for square and rectangular columns. Choose our Adjustable System (Slotted Angles) for variable dimensions or our Fixed System (THFP Series) for standard efficiency. Made from high-strength Q235 steel, our forms ensure a perfect concrete finish and are reusable for 300+ cycles.

Factory DirectOEM AvailableCE / ISO / SGS Available
Send Inquiry Download Catalog
Factory Direct Supply Direct manufacturer support for product sourcing and project orders.
OEM / Customization Custom mark support based on the current product content.
CE / ISO / SGS Available Company certificate support for buyer review.
Export Packaging Woven bag and pallet packing details from current content.
ADJUSTABLE COLUMN FORMS

Steel Column Formwork & Square Column Forms

Whether you need Adjustable Column Forms for varying sizes or fixed Metal Concrete Forms (THFP Series), Taihe offers the ultimate Modular Formwork System. Our systems are fully compatible with our Wall Formwork Panels.

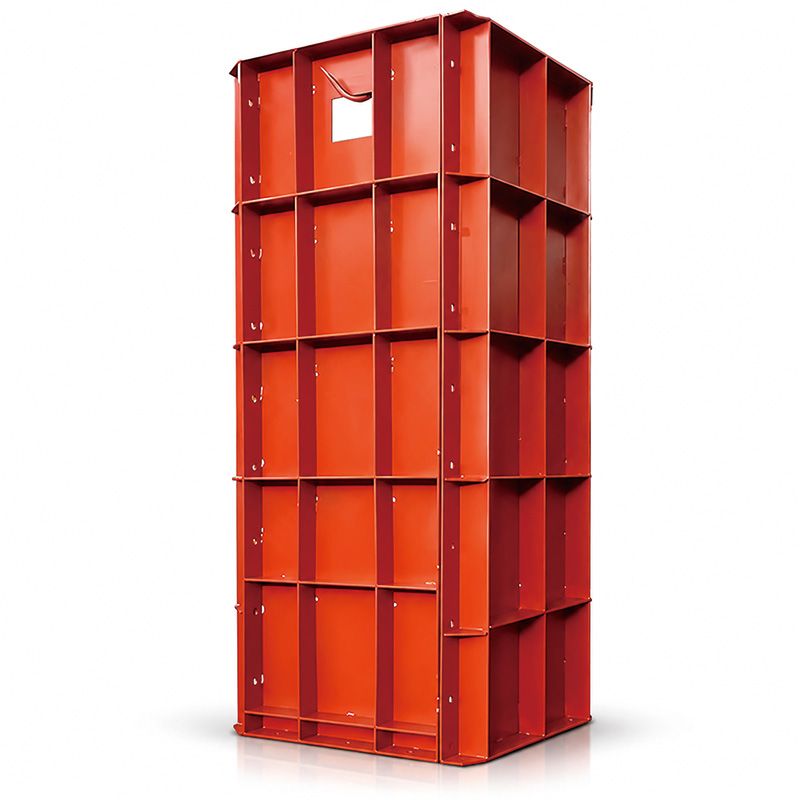

steel formwork (28)

Choose Your Metal Concrete Forms

We provide both Adjustable and Fixed solutions for Square Column Forms.

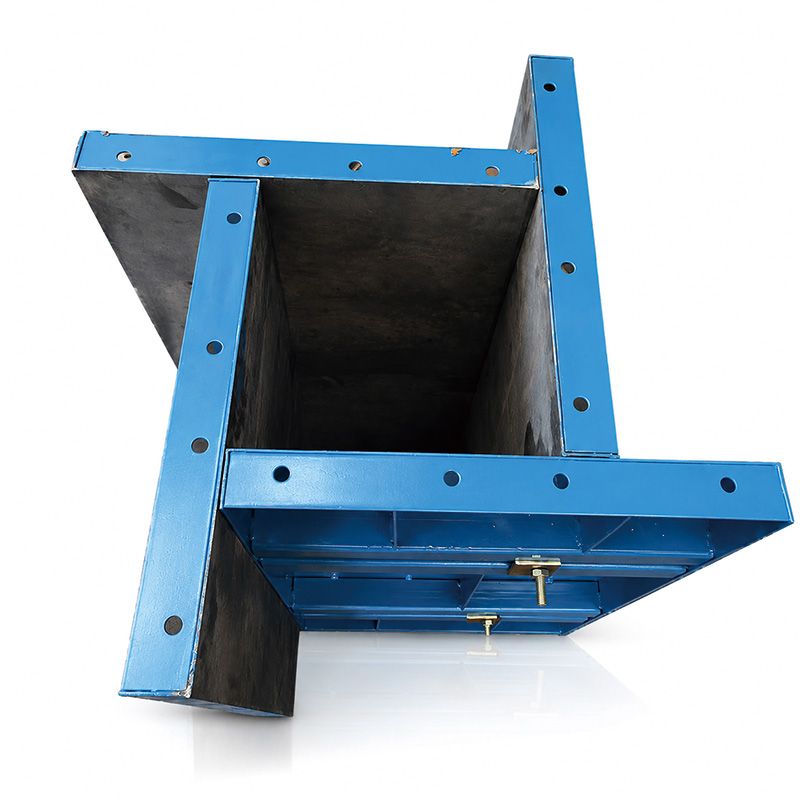

steel formwork (3)
OPTION 1

Adjustable Column Forms (Slotted)

Designed for projects requiring flexible Square Column Forms. This Modular Formwork System uses standard Flat Panels connected by 4 pieces of Slotted External Angles.

  • Versatility: Perfect Steel Column Formwork for changing cross-sections (e.g., 400x400 to 600x600mm).
  • Benefit: One set of forms covers multiple column specifications.
steel formwork (28)
OPTION 2

Fixed THFP Steel Panel System

Ideal for mass construction. We provide specific THFP Steel Panel sizes (100mm-300mm width) combined to form your exact Square Column Forms.

  • High Efficiency: Assemble 4 pieces of THFP Steel Panel (e.g., THFP3018) instantly.
  • Stability: The most rigid Steel Column Formwork solution. Secured with Rapid Clamps.

Technical Specifications for Steel Column Formwork

Detailed parameters for our Metal Concrete Forms.

1. Modular Formwork System Comparison

System Type Material Standard Height Connections
Adjustable Column Forms Q235 Steel (2.5/2.75mm face) 1200mm / 1500mm Slotted Angle + T-Bolt
THFP Steel Panel (Fixed) Q235 Steel (Standard) 900mm - 1800mm U-Clip / Pin / Bolt

2. THFP Steel Panel Sizes (Fixed)

Standard THFP Steel Panel list for assembling fixed Square Column Forms.

Code No. Size (mm) Code No. Size (mm)
THFP3018 300 x 1800 THFP2018 200 x 1800
THFP3015 300 x 1500 THFP2015 200 x 1500
THFP3012 300 x 1200 THFP2012 200 x 1200
THFP3009 300 x 900 THFP2009 200 x 900
THFP3006 300 x 600 THFP2006 200 x 600
THFP1518 150 x 1800 THFP1218 125 x 1800
THFP1515 150 x 1500 THFP1215 125 x 1500
THFP1512 150 x 1200 THFP1212 125 x 1200
THFP1506 150 x 600 THFP1206 125 x 600
THFP1018 100 x 1800 THFP1012 100 x 1200

* Note: Custom sizes for Metal Concrete Forms are available.

Need Data for Steel Column Formwork?

Download our complete catalog to see load capacity charts for Square Column Forms and THFP Steel Panel details.

📥 Download Full Catalog (PDF)
Factory Tour

Manufacturing Your Modular Formwork System

State-of-the-art welding robots ensuring the best Metal Concrete Forms.

🏭
2000 m² Daily Output of THFP Steel Panel
🛡️
ISO 9001 Certified Steel Column Formwork
🚢
Export Metal Concrete Forms to 30+ Countries

Frequently Asked Questions

Common questions about our Steel Column Formwork.

Q: What is the lifespan of your Steel Column Formwork?
Taihe Metal Concrete Forms are made of high-quality Q235 steel. With proper maintenance, our THFP Steel Panel can be reused 300 to 500 times, making it much more cost-effective than timber.
Q: Can I use Adjustable Column Forms for different sizes?
Yes! If you choose our Adjustable Column Forms (Flat Panels + Slotted Angles), you can adjust the size freely. A set designed for 600x600mm Square Column Forms can also be adjusted to 500x500mm or 400x400mm.
Q: What accessories do I need for this Modular Formwork System?
For the Adjustable System, you mainly need T-Bolts. For the Fixed THFP Steel Panel System, you might need Rapid Clamps or U-Clips. We supply all these accessories together with the panels.

Get a Quote for Square Column Forms

Tell us your column dimensions (e.g. 500x500mm) and whether you need Adjustable Column Forms or Fixed THFP Steel Panels.

About Hebei Taihe Construction Equipment Co., Ltd. Expert manufacturer of Steel Column Formwork and Construction Accessories.
