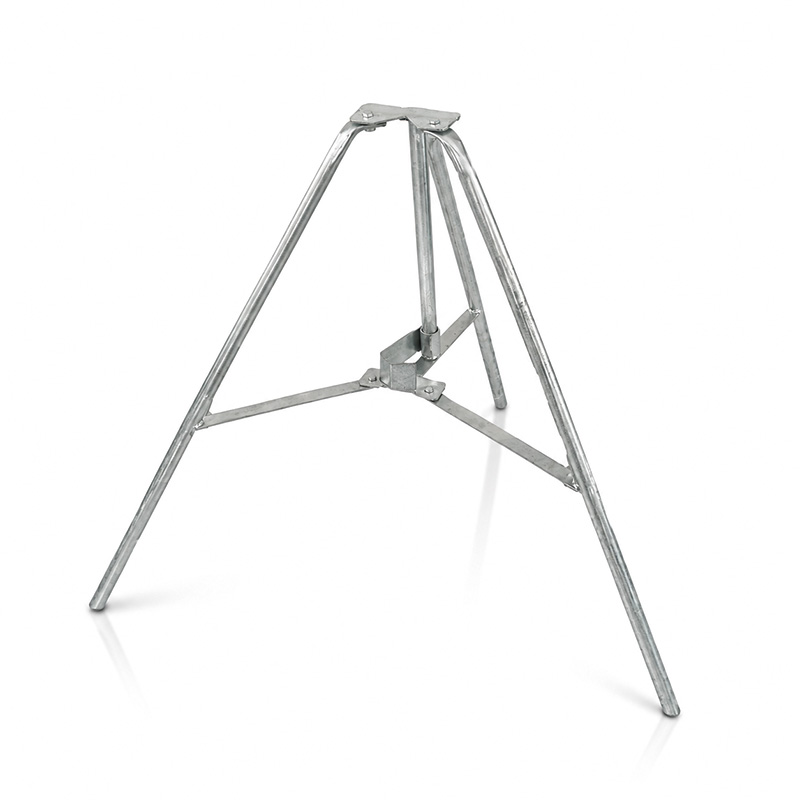

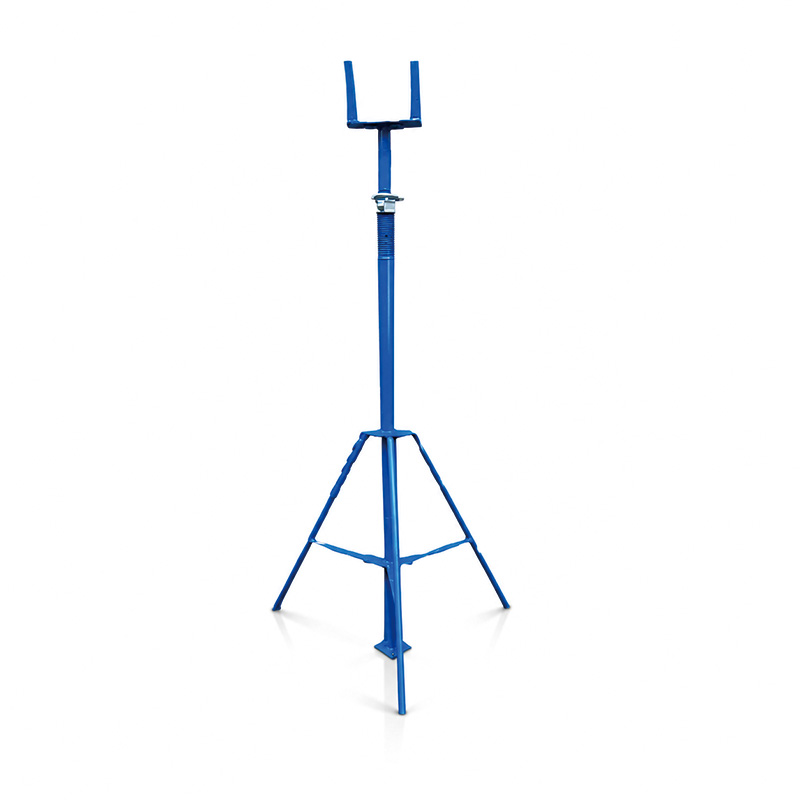

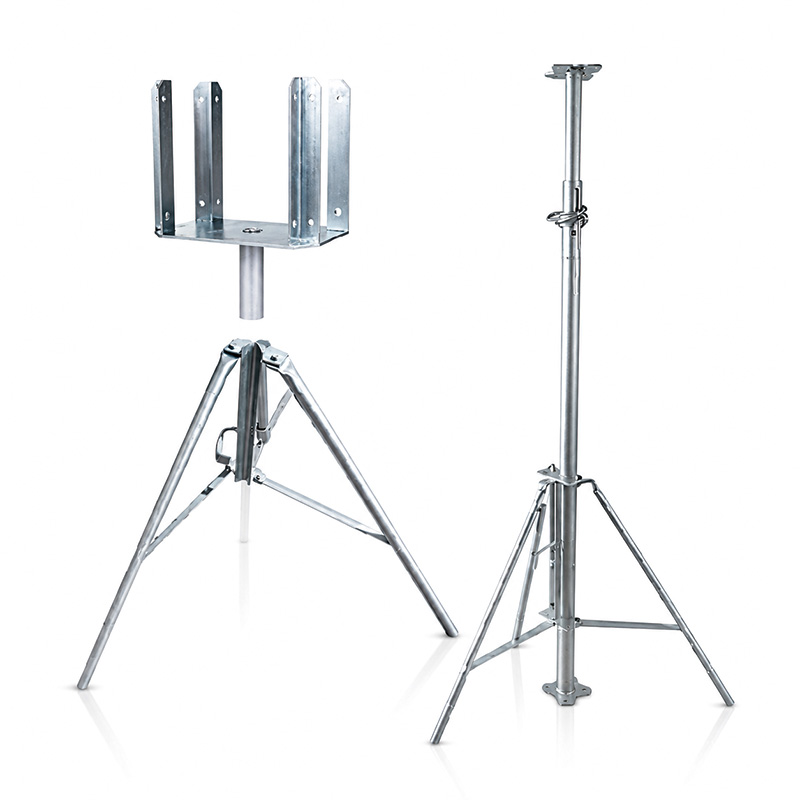

Steel Prop Tripod - EN74 Certified Stability Accessory for Steel Props
Specifically engineered to enhance the stability of steel prop systems, our EN74-certified tripod solves the pain point of "steel prop tilting/shifting" in construction scenarios. The scientific triangular structure distributes vertical load into horizontal stability, making it indispensable for uneven terrain, high-load formwork, and long-span support. Crafted from Q235 high-strength steel with hot-dip galvanization, it’s durable, corrosion-resistant, and compatible with most standard steel props worldwide.
Factory DirectOEM AvailableCE / ISO / SGS Available
Key Features
EN74 certified
Hot-dip galvanized finish
Compatible with most standard steel props
Technical Specifications
| Material | Q235 steel |
|---|---|
| Finish | Galvanized |
★ Triangular Stability Principle Unique triangular structure design — the most stable geometric shape in engineering, preventing steel prop tilting even on uneven ground (slope ≤15°).
★ Tool-Free Quick Locking Integrated clamping mechanism + non-slip rubber pad — one-person installation in 60 seconds, no additional tools needed for steel prop attachment.
★ Load Distribution Enhancement Expands steel prop contact area by 3x, reducing ground pressure from 5MPa to 1.5MPa — avoids sinking in soft soil construction sites.
★ Universal Quick Adaptation Adjustable clamping range (30-60mm) — fits 48.3mm/56mm standard steel props, no custom modification for different brands/models.
★ Compact Storage & Transport Foldable design (optional) — reduces storage volume by 50%, 200pcs fit in 1x1x1m carton, lowering shipping costs for bulk orders.
★ CE Safety Compliance Meets European construction safety standards — acceptable for government projects and large-scale contractors.
Watch on YouTube
🎬 Video: Installation & Stability Test of Steel Prop Tripod
- 60-Second Installation: Step-by-step demonstration of tool-free attachment to steel prop — no professional training required.
- Uneven Ground Test: Verifies stability on 15° slope, showing no tilting under 1-ton load (simulating concrete formwork scenario).
- Load-Bearing Verification: 2-ton static load test — no deformation of legs or clamping mechanism.
- Foldable Operation: Quick folding/unfolding process for storage — saves time during on-site turnover.

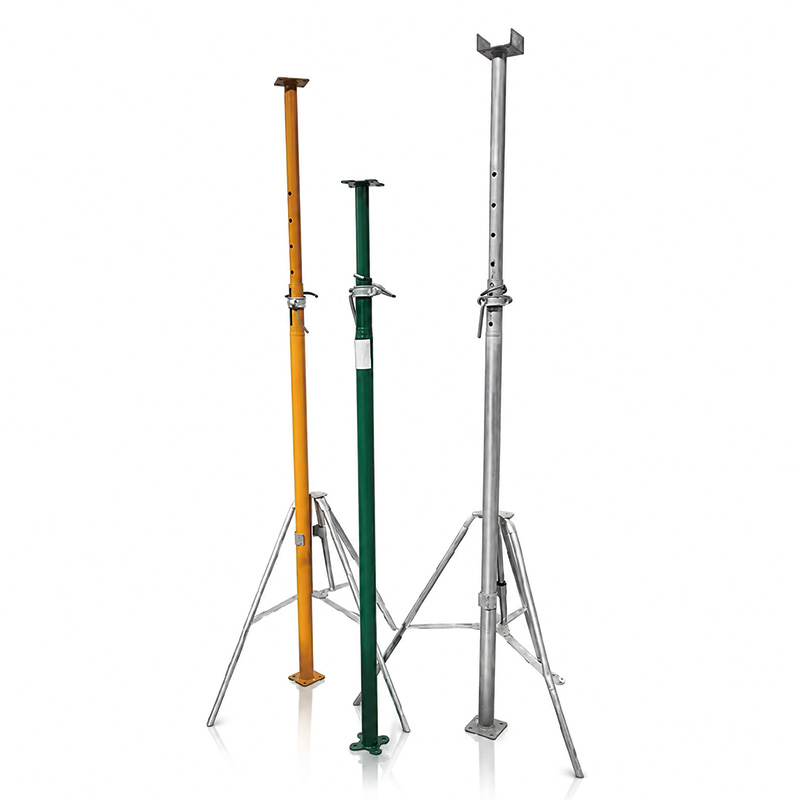

- Compatibility Demo: Fits 48.3mm/56mm standard steel props — one tripod for multiple steel prop models.
- Thickened Legs (φ32mm Q235 Steel): Withstand lateral pressure without bending, leg bottom non-slip pad increases friction coefficient to 0.8.
- Reinforced Top Clamp: Double-layer steel plate + adjustable bolt — firmly clamps steel prop tube, no slipping even under vibration.
- 60° Leg Angle: Optimized angle for maximum stability, balancing load-bearing capacity and ground adaptability.
✓ Clamping Range: 30-60mm (custom for non-standard steel props)
✓ Structure Type: Fixed / Foldable (for easy storage)
✓ Surface Treatment: Galvanized / Powder Coated (RAL code) / Anti-rust Painting
✓ Load Capacity: 1-3 tons (custom based on project load requirements)
✓ Leg Length: 300-800mm (adjust for different working heights)
Customization Process: Send steel prop tube diameter → 2-day technical confirmation → 5-day sample making → Mass production (10-15 days). OEM/ODM service available for bulk orders (≥500pcs).
| Specification | Details |
|---|---|
| Product Name | Steel Prop Tripod (Stability Accessory) |
| Material | Q235 Steel (Legs: φ32mm; Clamp: 6mm Thick Steel Plate) |
| Clamping Range | 48.3mm (Standard) / 30-60mm (Customizable) |
| Load Capacity | Up to 2 Tons (Static Load) |
| Structure Type | Fixed / Foldable (Optional) |
| Leg Length | 500mm (Standard) / 300-800mm (Customizable) |
| Installation Time | ≤60 Seconds (One-Person Operation) |
| Surface Treatment | Hot-Dip Galvanized (80μm+ Zinc Layer) / Powder Coated |
| Certifications | EN74, ISO9001, CE |
| Weight | 3.5kg (Fixed) / 4.2kg (Foldable) |
| Storage Volume | 0.012m³ (Fixed) / 0.006m³ (Foldable, After Folding) |

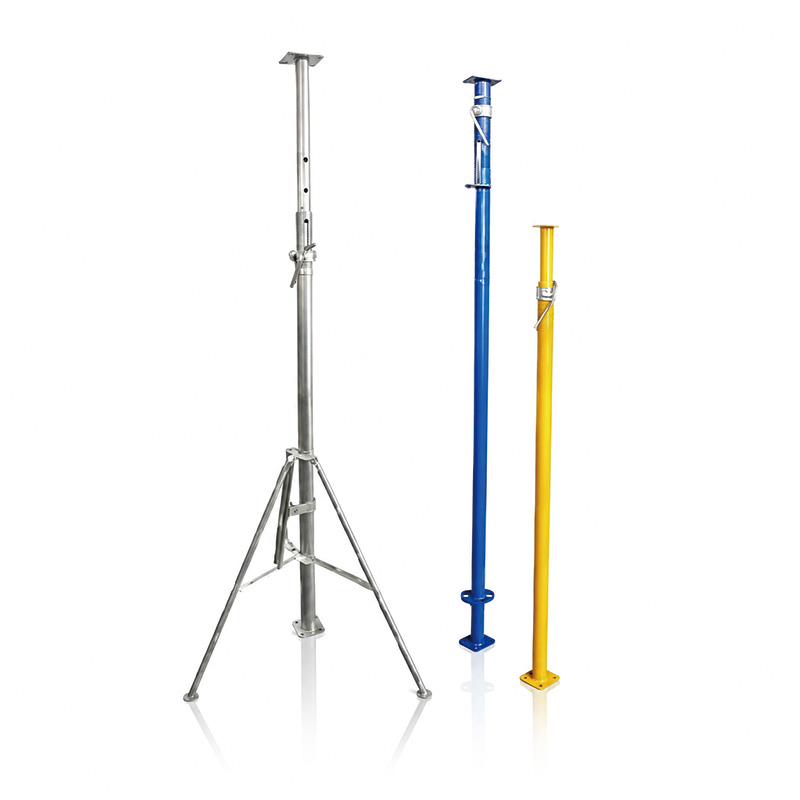

▲ Working with Steel Prop in Concrete Formwork
Stable support on uneven ground
▲ Foldable Design for Easy Storage
50% space saving after folding
🏗️
Uneven Terrain Construction: Highway roadbeds, mountainous area projects, or temporary sites with unlevel ground.
🏢
High-Load Formwork: Concrete slab, beam, and column pouring — prevents steel prop tilting under heavy concrete weight.
🌧️
Outdoor/Harsh Environments: Open-air construction sites (rain, dust) — galvanized finish resists corrosion.
🏗️
Long-Span Support: Factory warehouses, large hall construction — enhances steel prop stability for long-distance spans.
🔧
Renovation & Maintenance: Temporary support for wall/roof repair — compact design fits narrow spaces.
- Sample quantity: 1-3pcs (minimum order for sample)
- Sample price: 25 USD/pc (fixed) / 35 USD/pc (foldable) — includes material & processing cost
- Delivery time: 3-7 days (DHL/FedEx to your door, trackable)
- Sample customization: Supported (provide your steel prop tube diameter)
- Fee deduction: 100% sample fee refunded on first bulk order (≥500pcs)
🔹 How to confirm if it fits my steel prop (non-Taihe brand)?
Just provide your steel prop’s tube outer diameter (e.g., 48mm). Our standard tripod fits 48mm/56mm tubes (global standard). For non-standard diameters (30-60mm), we offer custom clamping range — no need to modify your steel props.
🔹 Is the foldable type as stable as the fixed type?
Yes. The foldable tripod uses a reinforced hinge structure (Q235 steel + anti-loose bolt) that doesn’t compromise stability. It passes the same 2-ton load test as the fixed type. The only difference is storage convenience — foldable for small storage spaces, fixed for heavy-duty long-term use.
🔹 Can it be used on soft soil (e.g., construction sites with mud)?
Yes. We recommend adding our optional tripod base plate (150×150×8mm steel plate) to further expand the contact area, reducing ground pressure to ≤1MPa. The base plate is sold separately (5 USD/pc) or can be included in customization.
🔹 What’s the MOQ and delivery time for bulk orders?
Standard MOQ: 100pcs (fixed type) / 300pcs (foldable type). Delivery time: 10-15 days for standard orders, 15-20 days for custom orders. Mixed container with steel props, U-head jacks, or base jacks is available — MOQ per item is 100pcs, saving shipping costs.
🔹 What’s the warranty for the tripod?
We provide a 2-year warranty for manufacturing defects (e.g., welding cracks, clamping failure, rusting within 6 months). For damage caused by improper use (e.g., overloading, collision), we offer cost-effective replacement parts (legs, clamps) for long-term use.
We provide one-stop solutions for steel prop tripod customization, delivery and after-sales. Contact Taihe for factory direct pricing and technical support!
